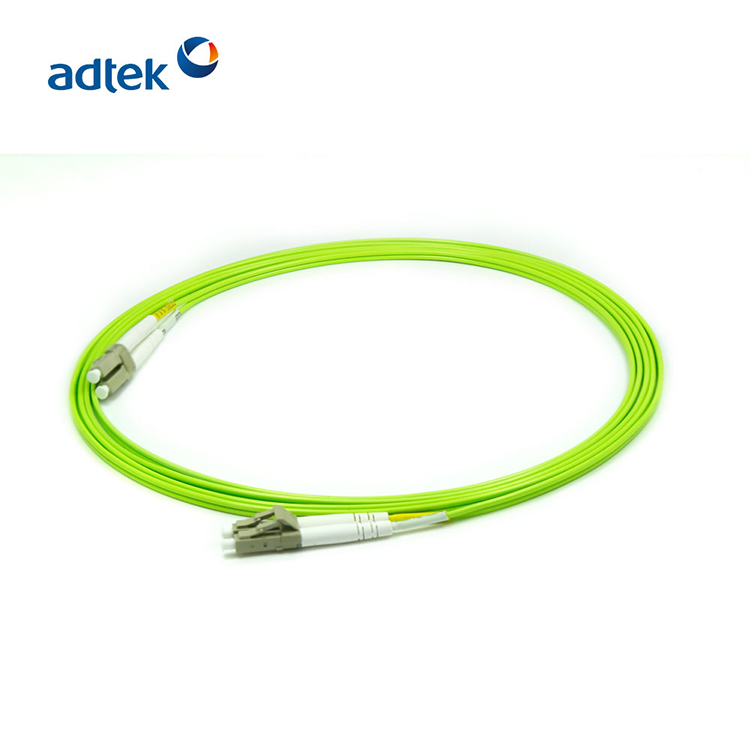

LC/UPC-LC/UPC Duplex 3.0mm OM5 PVC/LSZH 3MM Fiber Optic Patch Cord
1. Advanced foreign grinding technology and grinding equipment are introduced to ensure that the optical fiber's circular grinding offset, the fiber's depression, the fiber's surface without scratches and defects, the size of the radius of curvature of the ceramic capital end face and other grade parameters comply with the standard
2. Components are all optically tested and tested in accordance with ROHS standards.
3. Small insertion loss, large return loss, good interchangeability, excellent repetitive plugging performance, easy to use.
4. Full set of customization services can be provided according to customer requirements.
5. Operating temperature (-40℃~+75℃), storage temperature (-40℃~+85℃)
6. ANSI / TIA / EIA and ISO / IEC requirements for durability, moisture resistance, coupling stress, fiber optic tensile force and adaptability to harsh environments such as humidity, temperature extremes, plugging and unplugging forces and cable tensile stress, impact and vibration.
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
LC UPC to LC UPC Fiber Optic Patch Cord
This fiber optic patch cord product is a piece of certain lengths of fiber cable (length customized) with one FC UPC connector at one end, and one LC UPC connector at another end (two connectors in total). Fiber optic patch cords are utilized to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment.
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
