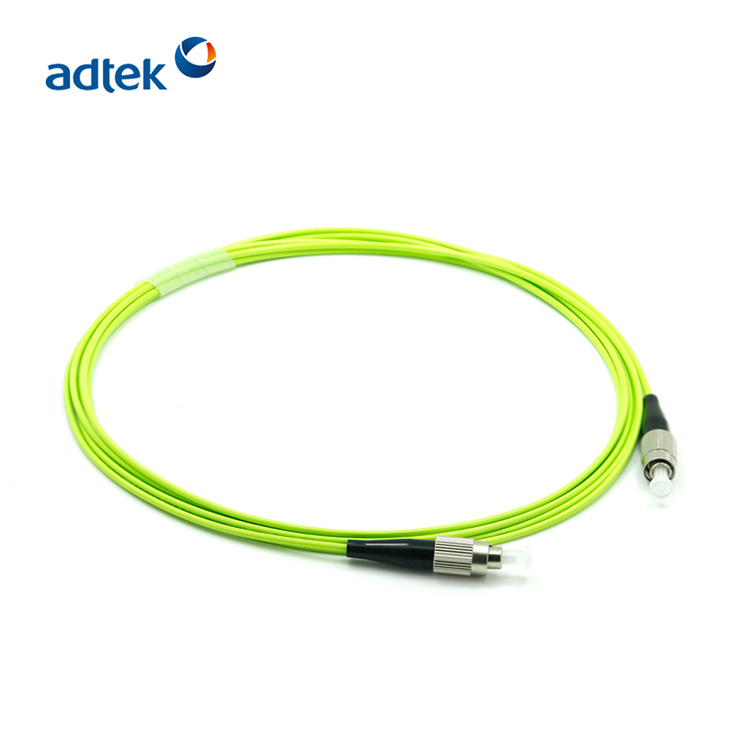

Optical Fiber Patch Cord 2.0mm Fiber Optic Patch Cord FC - FC Multimode Simplex OM3
1. High precision ceramic insert with small concentricity error and bore diameter to provide better insertion loss and return loss to avoid degradation of transmission performance and damage to optical transceiver devices.
2. Advanced grinding technology and grinding equipment are used to ensure that the surface of the optical fiber is free of scratches and defects, and that the technical parameters such as the circular grinding offset of the fiber, the depression of the fiber and the radius of curvature of the ceramic end face meet the specified standards.
3. The components are all optically tested and tested in accordance with ROHS standards.
4. ANSI / TIA / EIA and ISO / IEC requirements for durability, moisture resistance, coupling stress, fiber tensile force and adaptability to harsh environments such as humidity, temperature extremes, insertion and removal forces and cable tensile stress, impact and vibration.
5. Low insertion loss, high return loss, good interchangeability, excellent repetitive plugging performance and ease of use.
6. Operating temperature (-40℃~+75℃), storage temperature (-40℃~+85℃).
| Item | SM | MM |
| Polishing Type | PC | UPC | APC | PC |
| Insertion Loss | ≤0.2dB (Typical ≤0.1dB | ≤0.3dB/0.5dB(MTRJ) |
| Custom | | | | |
| Return Loss | ≤-45dB | ≤-55dB | ≤-65dB | / |
| Custom | | | | |
| Durability(500 Mating) | 0.2 dB Max. Increase |
| Operating Temperature | -20°C~+75°C |
| Storage Temperature | -40°C~+75°C |
| Remark: | Ferrule Concentricity<1μm |
| | Ferrule inner diameter tolerance+1/ 0μm |
| | Ferrule outer diameter tolerance±0.5μm |
| | Insertion loss<0.1dB random mating |
Features:
Low insertion loss and back reflection loss
Good Durability
Good exchangeability
High temperature stability
Specifications:
Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
Repeatability: ≦0.1
Durability ≦0.2dB typical change, 1000 matings
Interchangeability: ≦0.2dB
Tensile Strength : >10kg
Operating Temperature: -40 ~ 85℃
Applications:
CATV / Metro, Active device termination,Telecommunication networks, Local Area Networks (LANs)Data processing networks, Test equipment, Premise installations, Wide Area Networks (WANs)
