SC-FC / UPC Simplex Fiber Optic Patch Cable 2.0mm OM5 Fiber Cable
| Range of Mode | Singlemode or Multimode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |

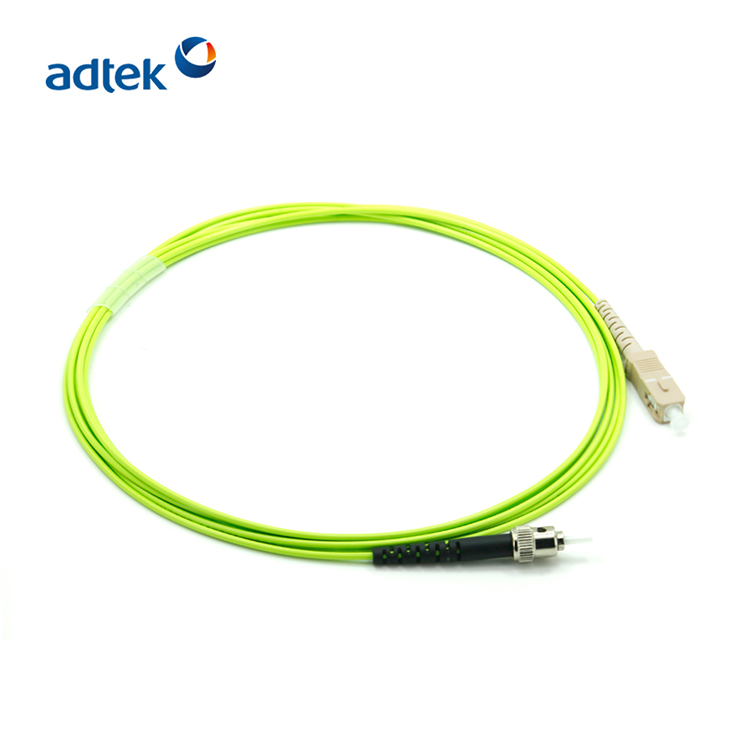

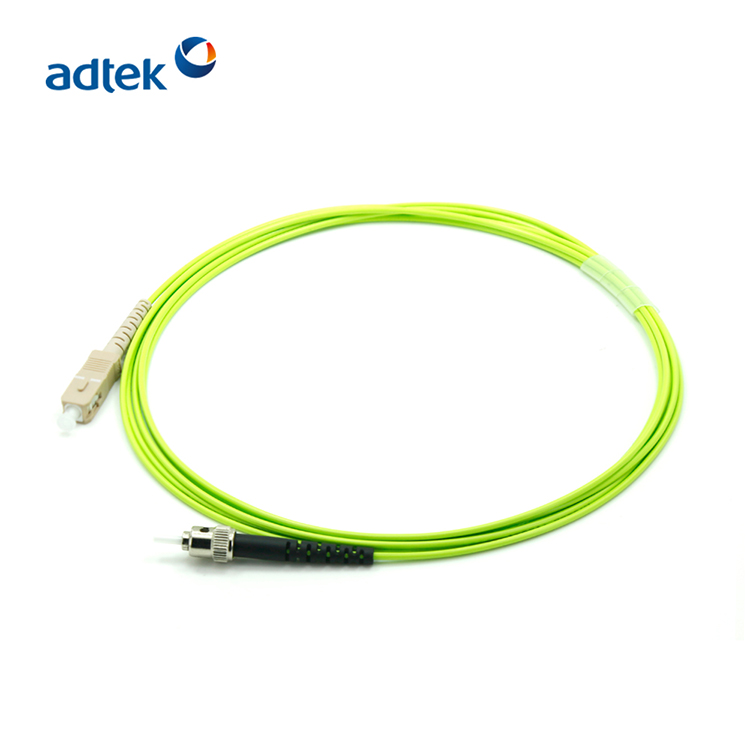

Detailed Images
1. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length .
2.The patch cord are factory terminated, assembled, tested and inspected prior to shipment.
3.All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
1. High precision ceramic insert with small concentricity error and bore diameter to provide better insertion loss and return loss to avoid degradation of transmission performance and damage to optical transceiver devices.
2. Advanced grinding technology and grinding equipment are used to ensure that the surface of the optical fiber is free of scratches and defects, and that the technical parameters such as the circular grinding offset of the fiber, the depression of the fiber and the radius of curvature of the ceramic end face meet the specified standards.
3. The components are all optically tested and tested in accordance with ROHS standards.
4. ANSI / TIA / EIA and ISO / IEC requirements for durability, moisture resistance, coupling stress, fiber tensile force and adaptability to harsh environments such as humidity, temperature extremes, insertion and removal forces and cable tensile stress, impact and vibration.
5. Low insertion loss, high return loss, good interchangeability, excellent repetitive plugging performance and ease of use.
6. Operating temperature (-40℃~+75℃), storage temperature (-40℃~+85℃).
