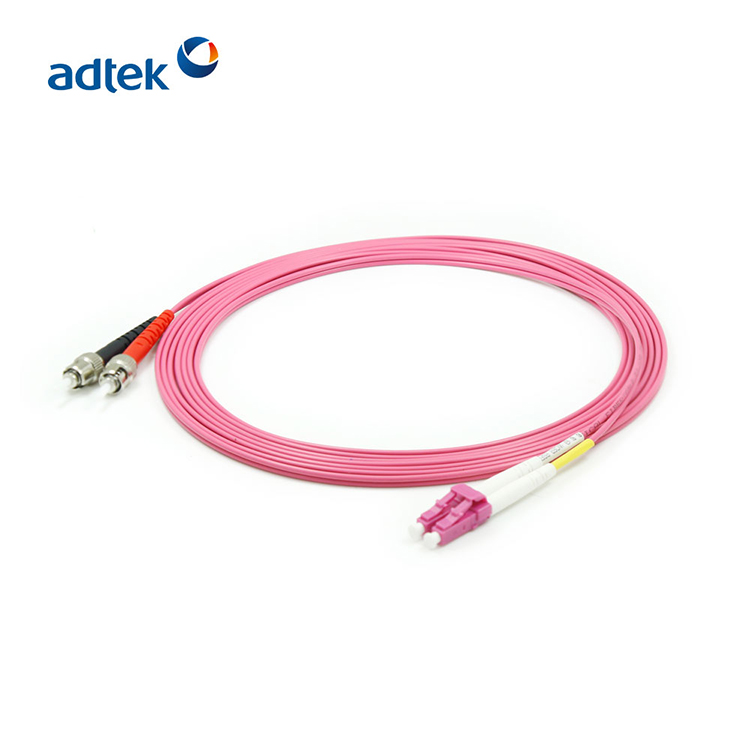

LC To ST Multimode Duplex Fiber Optic Patch Cable OM4 Optical Fiber Patch Cord

Brand Name : ADTEK/OEM

Model Number : J4U2U2243MP-VT

Certification : ISO, UL, CE, ROHS

Place of Origin : Guangdong, China

MOQ : 1 Piece

Price : $0.60 - $3.00/ Piece

Payment Terms : T/T

Supply Ability : 600000 Piece/Pieces per Month

Delivery Time : 7-14days)

Packaging Details : 1pc/PE bag Bags packed in Carton Carton Size: 38*38*28cm OEM bag/Carton optional

Name : LC To ST Fiber Patch Cable

Option Fiber diamet : 0.9mm, 2.0mm, 3.0mm

Operating Temp. : -25℃ to +70℃

Storage Temp. : -40℃ to +85℃

Quality Control : 100% test before shipping

Polish : PC/UPC/APC

Contact Now

LC To ST Multimode Duplex Fiber Optic Patch Cable OM4 Optical Fiber Patch Cord



It is a device used to make a removable (movable) connection between optical fiber and optical fiber, which is a precision buttressing of the two ends of the optical fiber so that the optical energy output from the transmitting fiber can be coupled to the receiving fiber to the maximum extent and the impact on the system caused by its intervention in the optical link can be minimized. Fiber optic patch cable is a passive optical device to achieve the active connection between optical fibers, it also has the function of connecting optical fibers to active devices, optical fibers to other passive devices, optical fibers to systems and instruments. It also has the function of connecting fiber to active devices, fiber to other passive devices, fiber to systems and instruments.

Range of Mode Single mode or Multi mode
Cable Type Simplex, Duplex Ziocord. or Multi-cores
Connector Style SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type PC, UPC, APC
Cable Diameter 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket PVC /LSZH/OFNP
Jacket Color SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability 500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp. -25℃ to +70℃
Storage Temp. -40℃ to +85℃



Optic fiber patch cord



Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.



Connector Type Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /



Feature
Low insertion loss high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Application
Fiber optic communication networks
Optical access network
Data processing networks
Premise installations





LC To ST Multimode Duplex Fiber Optic Patch Cable OM4 Optical Fiber Patch Cord

LC To ST Multimode Duplex Fiber Optic Patch Cable OM4 Optical Fiber Patch Cord



LC To ST Multimode Duplex Fiber Optic Patch Cable OM4 Optical Fiber Patch Cord
