100G QSFP28 Active Optical Cable AOC Dual data rate Compatible with RoHS

Product Categories
Shenzhen Adtek Technology Co., Ltd.
Contact Now

100G QSFP28 Active Optical Cable AOC Dual data rate Compatible with RoHS

Brand Name : ADTEK/OEM

Model Number : ADT-SFP28-100G-AOC3M-AQ, ADT-SFP28-100G-AOC3M-AQ

Certification : ISO:9000, RoHs, CE

Place of Origin : Guangdong, China

MOQ : 1 Piece

Price : $15.00 - $300.00/ Piece

Payment Terms : T/T

Supply Ability : 100000 Piece/Pieces per Week

Delivery Time : 3-14days

Packaging Details : PE bag+cartone box

Name : 100G QSFP28 AOC

Data Rate : 100G

Operating Temperature : 0 ℃ to 70 ℃

Power Supply : +3.3V

Contact Now

100G QSFP28 Active optical cable





Compatibility brand






Cisco,HP,Juniper,Finisar,D-Link,Alcatel,etc



Application






Telecommunication



Power Supply





+3.3V



Operating Temperature





0 ℃ to 70 ℃



Cable Type





OM2/OM3/OM4 Fiber Cable



Conductor Material





optical Fiber



Features
1. Dual data-rate of 100G operation
2. QSFP28 laser and PIN photodetector for 3m transmission
3. Compliant with QSFP28 MSA and SFF-8472 with simplex AOC receptacle
4. Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
5. Compatible with SONET BT-QSFP28-AOC
6. Compatible with RoHS
7. +3.3V single power supply
8. Operating case temperature: Standard : 0 to +70°C


Specification


9. Gigabit Ethernet
10. Fiber Channel
11. Switch to Switch interface
12. Switched backplane applications
13. Router/Server interface
14. Other optical transmission systems



Features
 Support 100GBASE-SR4/EDR application
 Compliant to QSFP28 Electrical MSA SFF-8636
 Multi rate of up to 25.78125Gbps
 Transmission distance up to 100m
 +3.3V single power supply
 Low power consumption
 Operating temp
Commercial: 0°C to +70 °C
 RoHS compliant
 UL certification cables (optional)
Applications
 100GBASE-SR4 at 25.78125Gbps per lane
 InfiniBand QDR, EDR
 Other optical links



Table1- Absolute Maximum Ratings

Parameter Symbol Min. Typical Max. Unit Notes
Supply Voltage Vcc3 -0.5 - +3.6 V
Storage Temperature Ts -10 - +70 °C
Operating Humidity RH +5 - +85 % 1
Receiver Damage Threshold P Rdmg +3.4 - - dBm

Note1: No condensation



Recommended Operating Conditions

Table 2- Recommended operating Conditions

Parameter Symbol Min. Typical Max. Unit
Operating Case Temperature TC 0 - +70 °C
Power Supply Voltage Vcc 3.14 3.3 3.47 V
Power Supply Current Icc - - 150 mA
Power Dissipation Pd - - 0.6 W
Bit Rate BR - 10.3125 - Gbps



Electrical Characteristics

Table 3- Electrical Characteristics

Parameter   Symbol Min. Typ. Max. Units Notes
      Transmitter
Differential Data Input Swing Vin,P-P 200 - 1600 mVPP
Input Differential Impedance ZIN 90 100 110 Ω
Tx_Fault Normal Operation VOL 0 - 0.8 V
  Transmitter Fault VOH 2.0 - VCC V
  Normal Operation VIL 0 - 0.8 V
Tx_Disable Laser Disable VIH 2.0 - VCC+0.3 V
      Receiver
Differential Date Output Vout 370 - 1600 mV
Output Differential Impedance ZD 90 100 110 Ω
  Normal Operation VOL 0 - 0.8 V
Rx_LOS Lose Signal VoH 2.0 - VCC V

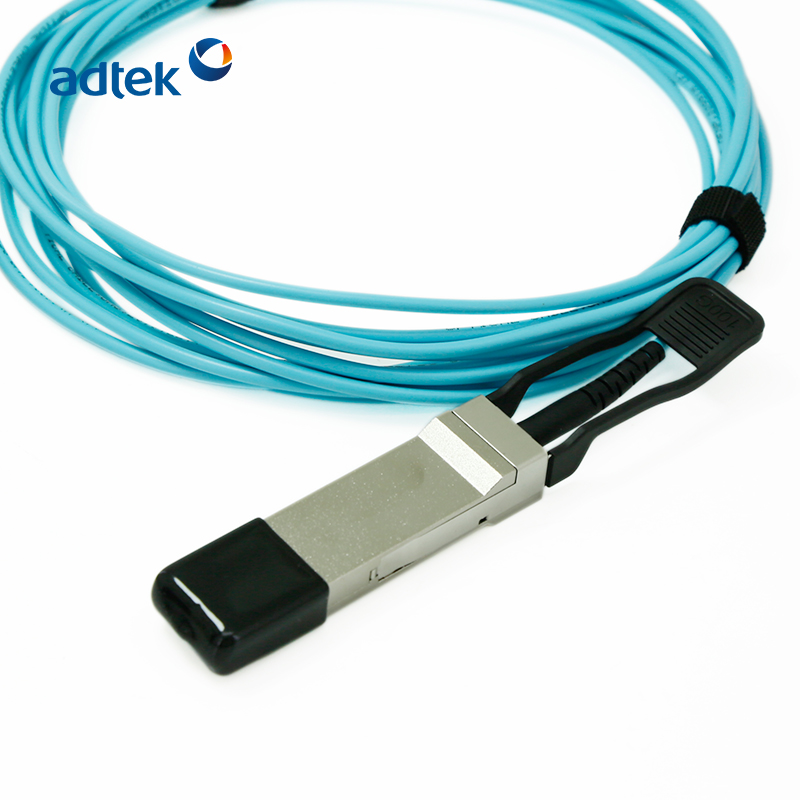

100G QSFP28 Active Optical Cable AOC Dual data rate Compatible with RoHS

100G QSFP28 Active Optical Cable AOC Dual data rate Compatible with RoHS

100G QSFP28 Active Optical Cable AOC Dual data rate Compatible with RoHS100G QSFP28 Active Optical Cable AOC Dual data rate Compatible with RoHS100G QSFP28 Active Optical Cable AOC Dual data rate Compatible with RoHS100G QSFP28 Active Optical Cable AOC Dual data rate Compatible with RoHS
