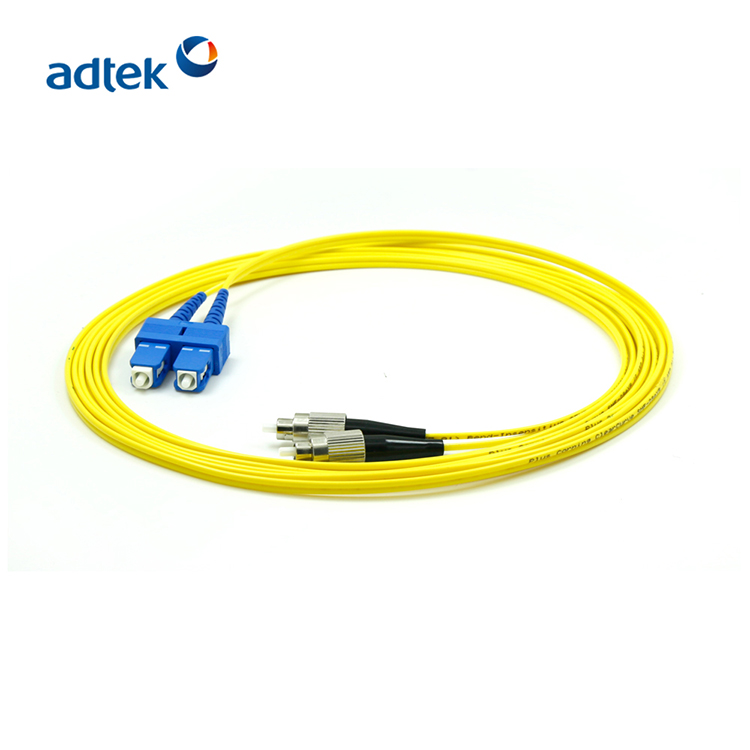

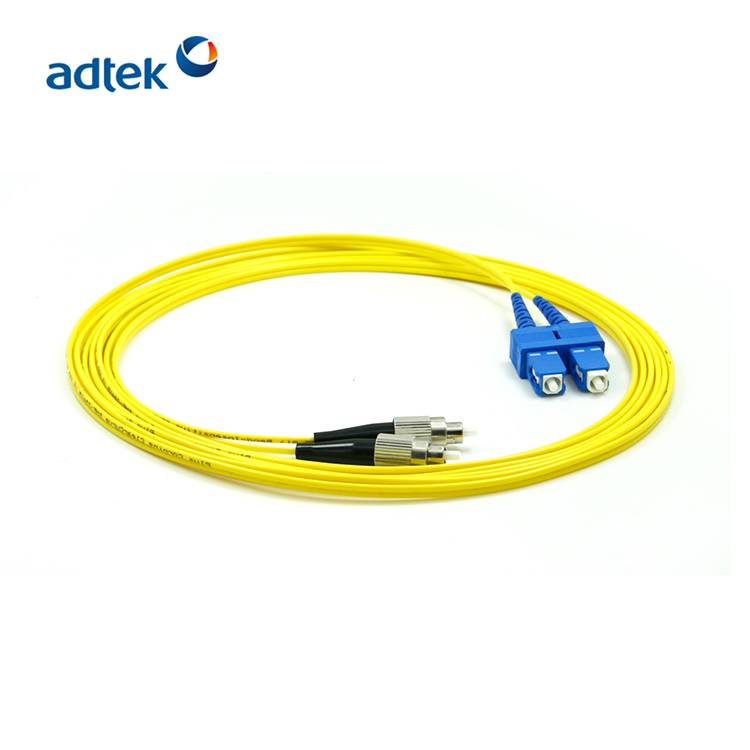

Duplex Singlemode Fiber Optic Patch Cables SC to FC Optical Fiber Cable Jumper

Shenzhen Adtek Technology Co., Ltd.
Contact Now

Duplex Singlemode Fiber Optic Patch Cables SC to FC Optical Fiber Cable Jumper

  • 1
  • 2
  • 3

Brand Name : ADTEK/OEM

Model Number : J4A4A2293MP-YL

Certification : ISO:9001,UL, CE, ROHS

Place of Origin : Guangdong, China

MOQ : 1 Piece

Price : $0.20 - $4.50/ Piece

Payment Terms : T/T

Supply Ability : 1000000 Piece/Pieces per Month

Delivery Time : 3-14days

Packaging Details : Individual 1PC in plastic bag, then in carton,Outer cartons(38*38*28cm carton size) and OEM are acceptable

Name : Duplex Fiber Optic Patch Cable

Diameter : 0.9mm; 2.0mm; 3.0mm

Testing : 100% Tested, Interferometer Test is acceptable

Polishing type : PC/PC/APC

Polishing : PC、APC、UPC

Contact Now

Duplex Singlemode Fiber Optic Patch Cables SC to FC Optical Fiber Cable Jumper



The SC product line and the required fiber optic cables have become the standard interface for applications such as fiber optic communication systems, fiber to the home, fiber optic data transmission, fiber optic CATV, local area networks (LAN), optical test instruments, fiber optic sensors, and more. This product This product is not only used in these fields, but also suitable for industrial, aerospace and defense applications.



1. Using high precision ceramic insert with small concentricity error and inner hole diameter to provide better insertion loss and return loss to avoid degradation of transmission performance and damage to optical transceiver devices.

2. Introduction of foreign advanced grinding technology and grinding equipment to ensure that the optical fiber's circular grinding offset, the fiber's depression, the fiber's surface without scratches and defects, the size of the radius of curvature of the ceramic capital end face and other grade parameters comply with the standard.

3. Insertion loss is small, return loss is large, interchangeability is good, repeated plugging performance is excellent, easy to use.

4. Can provide a full set of customized services according to customer requirements. 5.

5. All components are optically tested and tested in accordance with ROHS standards.

6. Compliance with ANSI / TIA / EIA and ISO / IEC requirements for durability, moisture resistance, coupling stress, fiber optic tensile force and adaptability to harsh environments such as humidity, temperature extremes, plugging and unplugging forces and cable tensile stress, impact and vibration.

7. Operating temperature (-40℃~+75℃), storage temperature (-40℃~+85℃)



Range of Mode Single mode or Multi mode
Cable Type Simplex, Duplex Ziocord. or Multi-cores
Connector Style SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type PC, UPC, APC
Cable Diameter 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket PVC /LSZH/OFNP
Jacket Color SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability 500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp. -25℃ to +70℃
Storage Temp.

-40 to +85



Features
Low insertion loss, high return loss, Good repeatability and interchange ability, Simplex and duplex for option, UPC and APC type
a available
Applications:
LAN, WAN, and access system
Fiber CATV and fiber network system



Advanced production and testing equipment 2. Professional manufacturer, 100% tested 3. Full compliance with ISO 9001:2008 quality management system 4. Our company has experienced professional team 5. Provide reliable solutions and satisfactory services 6. Warmly services with careful attentions 7.Can provide your specific inquiry within 24 hours.Advanced production and testing equipment



Duplex Singlemode Fiber Optic Patch Cables SC to FC Optical Fiber Cable Jumper

Duplex Singlemode Fiber Optic Patch Cables SC to FC Optical Fiber Cable Jumper

Duplex Singlemode Fiber Optic Patch Cables SC to FC Optical Fiber Cable Jumper

Our Value:

Initiative, Hard working ,Efficiency,Innovation, Grateful, Sharing.

Our Philosophy:

Professional casts quality,cooperation makes win-win future.

Our Solutions:

Fastest, Effective, Reliable, Flexible And Professional OEM/ODM Solutions.

Our Certificate:

ISO9001:2015, ISO14001:2015,OHSAS18001:2007 etc.

Our Team:

We serve our every customer with fastest and most professional response.

Our Patents:

We have 20 patents and we'll go on creating new products to master latest market trend.



Duplex Singlemode Fiber Optic Patch Cables SC to FC Optical Fiber Cable Jumper



Duplex Singlemode Fiber Optic Patch Cables SC to FC Optical Fiber Cable JumperDuplex Singlemode Fiber Optic Patch Cables SC to FC Optical Fiber Cable Jumper





Duplex Singlemode Fiber Optic Patch Cables SC to FC Optical Fiber Cable Jumper
